K8s IPVS工作原理
#k8s #ipvs

IPVS

IPVS 专门用于负载均衡，并使用更高效的数据结构（哈希表），允许几乎无限的规模扩张。

Ipvs和Iptables区别

Netfilter Hook 作用 Iptables Ipvs
NF_IP_PRE_ROUTING 接收的数据包进入协议栈后立即触发此回调函数。发生在路由判断之前 ✓ ✕
NF_IP_LOCAL_IN 接收的数据包经过路由判断后，如果目标地址在本机上，则将触发此回调函数 ✓ ✓
NF_IP_FORWARD 接收的数据包经过路由判断后，如果目标地址在其他机器上，则将触发此回调函数 ✓ ✓
NF_IP_LOCAL_OUT 本机产生的准备发送的数据包，在进入协议栈后立即触发此回调函数 ✓ ✓
NF_IP_POST_ROUTING 本机产生的准备发送的数据包或者经由本机转发的数据包，在经过路由判断之后，将触发此回调函数。 ✓ ✕

服务网络拓扑

创建 ClusterIP 类型服务时，IPVS proxier 将执行以下三项操作：

  • 确保节点存在虚拟接口，默认是kube-ipvs0
  • 将ClusterIP绑定到虚拟接口
  • 分别为每个ClusterIP地址创建IPVS虚拟服务器

端口映射

IPVS中有三种代理模式: NAT、IPIP和DR。目前只有NAT模式支持端口映射。kube-proxy利用NAT模式实现端口映射

1
2
3
4
5
# ipvsadm -ln
#  IPVS 服务端口443到Pod端口5443的映射
TCP  10.96.176.171:443 rr
  -> 10.244.110.164:5443          Masq    1      1          0
  -> 10.244.162.180:5443          Masq    1      3          0

会话关系

IPVS 支持客户端IP会话关联（持久连接）。 当服务指定会话关系时，IPVS 代理将在 IPVS 虚拟服务器中设置超时值（默认为180分钟= 10800秒）

1
2
3
4
5
6
7
8
9
10
11
12
# kubectl describe svc nginx
Name:			nginx
...
IP:			    10.102.128.4
Port:			http	3080/TCP
Session Affinity:	ClientIP  # 会话保持

# ipvsadm -ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  10.96.176.175:80 rr persistent 10800

Iptables和Ipset

ipvs 会使用 iptables 进行包过滤、SNAT、masquared(伪装)，并使用ipset来简化iptables的规则管理

kube-proxy ipvs模式在如下情况中依赖iptables实现:

  • kube-proxy配置参数--masquerade-all = true
  • kube-proxy启动时指定集群CIDR
  • 支持Loadbalancer和NodePort类型的Service
名称 条目 使用场景
KUBE-CLUSTER-IP All service IP + port Mark-Masq for cases that masquerade-all=true or clusterCIDR specified
KUBE-LOOP-BACK All service IP + port + IP masquerade for solving hairpin purpose
KUBE-EXTERNAL-IP service external IP + port masquerade for packages to external IPs
KUBE-LOAD-BALANCER load balancer ingress IP + port masquerade for packages to load balancer type service
KUBE-LOAD-BALANCER-LOCAL LB ingress IP + port with externalTrafficPolicy=local accept packages to load balancer with externalTrafficPolicy=local
KUBE-LOAD-BALANCER-FW load balancer ingress IP + port with loadBalancerSourceRanges package filter for load balancer with loadBalancerSourceRanges specified
KUBE-LOAD-BALANCER-SOURCE-CIDR load balancer ingress IP + port + source CIDR package filter for load balancer with loadBalancerSourceRanges specified
KUBE-NODE-PORT-TCP nodeport type service TCP port masquerade for packets to nodePort(TCP)
KUBE-NODE-PORT-LOCAL-TCP nodeport type service TCP port with externalTrafficPolicy=local accept packages to nodeport service with externalTrafficPolicy=local
KUBE-NODE-PORT-UDP nodeport type service UDP port masquerade for packets to nodePort(UDP)
KUBE-NODE-PORT-LOCAL-UDP nodeport type service UDP port with externalTrafficPolicy=local accept packages to nodeport service with externalTrafficPolicy=local

入网流量

  1. nat表

    PREROUTING -> KUBE-SERVICES -> KUBE-MARK-MASQ -> ACCEPT

    1
    2
    3
    4
    Chain PREROUTING (policy ACCEPT 0 packets, 0 bytes)
     pkts bytes target     prot opt in     out     source               destination
        7   491 KUBE-SERVICES  all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* kubernetes service portals */
        2   191 DOCKER_OUTPUT  all  --  *      *       0.0.0.0/0            172.18.0.1
    1
    2
    3
    4
    5
    Chain KUBE-SERVICES (2 references)
     pkts bytes target     prot opt in     out     source               destination
        0     0 KUBE-MARK-MASQ  all  --  *      *      !10.244.0.0/16        0.0.0.0/0            /* Kubernetes service cluster ip + port for masquerade purpose */ match-set KUBE-CLUSTER-IP dst,dst
       20  1200 KUBE-NODE-PORT  all  --  *      *       0.0.0.0/0            0.0.0.0/0            ADDRTYPE match dst-type LOCAL
        0     0 ACCEPT     all  --  *      *       0.0.0.0/0            0.0.0.0/0            match-set KUBE-CLUSTER-IP dst,dst
    1
    2
    3
    Chain KUBE-MARK-MASQ (2 references)
     pkts bytes target     prot opt in     out     source               destination
        0     0 MARK       all  --  *      *       0.0.0.0/0            0.0.0.0/0            MARK or 0x4000

  2. filter表

    INPUT -> KUBE-NODE-PORT -> KUBE-FIREWALL -> IPVS[kube-ipvs0]

    1
    2
    3
    4
    Chain INPUT (policy ACCEPT 1021 packets, 145K bytes)
     pkts bytes target     prot opt in     out     source               destination
    2761K  402M KUBE-NODE-PORT  all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* kubernetes health check rules */
    2768K  404M KUBE-FIREWALL  all  --  *      *       0.0.0.0/0            0.0.0.0/0
    1
    2
    3
    Chain KUBE-NODE-PORT (1 references)
     pkts bytes target     prot opt in     out     source               destination
        0     0 ACCEPT     all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* Kubernetes health check node port */ match-set KUBE-HEALTH-CHECK-NODE-PORT dst
    1
    2
    3
    4
    Chain KUBE-FIREWALL (2 references)
     pkts bytes target     prot opt in     out     source               destination
        0     0 DROP       all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* kubernetes firewall for dropping marked packets */ mark match 0x8000/0x8000
        0     0 DROP       all  --  *      *      !127.0.0.0/8          127.0.0.0/8          /* block incoming localnet connections */ ! ctstate RELATED,ESTABLISHED,DNAT
    1
    2
    3
    4
    5
    6
    7
    root@ipvs-control-plane:/# ip addr show dev kube-ipvs0
    7: kube-ipvs0: <BROADCAST,NOARP> mtu 1500 qdisc noop state DOWN group default
        link/ether 82:b2:e2:12:d9:77 brd ff:ff:ff:ff:ff:ff
        inet 10.96.0.1/32 scope global kube-ipvs0
           valid_lft forever preferred_lft forever
        inet 10.96.0.10/32 scope global kube-ipvs0
           valid_lft forever preferred_lft forever
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    root@ipvs-control-plane:/# ipset list

    ...

    Name: KUBE-LOOP-BACK
    Type: hash:ip,port,ip
    Revision: 5
    Header: family inet hashsize 1024 maxelem 65536
    Size in memory: 680
    References: 1
    Number of entries: 6
    Members:
    10.244.0.2,tcp:9153,10.244.0.2
    10.244.0.2,udp:53,10.244.0.2
    10.244.0.4,tcp:9153,10.244.0.4
    10.244.0.4,udp:53,10.244.0.4
    10.244.0.4,tcp:53,10.244.0.4
    10.244.0.2,tcp:53,10.244.0.2

    Name: KUBE-LOAD-BALANCER
    Type: hash:ip,port
    Revision: 5
    Header: family inet hashsize 1024 maxelem 65536
    Size in memory: 192
    References: 0
    Number of entries: 0
    Members:

    Name: KUBE-NODE-PORT-LOCAL-SCTP-HASH
    Type: hash:ip,port
    Revision: 5
    Header: family inet hashsize 1024 maxelem 65536
    Size in memory: 192
    References: 0
    Number of entries: 0
    Members:

    Name: KUBE-CLUSTER-IP
    Type: hash:ip,port
    Revision: 5
    Header: family inet hashsize 1024 maxelem 65536
    Size in memory: 448
    References: 2
    Number of entries: 4
    Members:
    10.96.0.1,tcp:443
    10.96.0.10,tcp:53
    10.96.0.10,udp:53
    10.96.0.10,tcp:9153

    ...
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    root@ipvs-control-plane:/# ipvsadm -ln
    IP Virtual Server version 1.2.1 (size=4096)
    Prot LocalAddress:Port Scheduler Flags
      -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
    TCP  10.96.0.1:443 rr
      -> 172.18.0.5:6443              Masq    1      3          0
    TCP  10.96.0.10:53 rr
      -> 10.244.0.2:53                Masq    1      0          0
      -> 10.244.0.4:53                Masq    1      0          0
    TCP  10.96.0.10:9153 rr
      -> 10.244.0.2:9153              Masq    1      0          0
      -> 10.244.0.4:9153              Masq    1      0          0
    UDP  10.96.0.10:53 rr
      -> 10.244.0.2:53                Masq    1      0          0
      -> 10.244.0.4:53                Masq    1      0          0

如上所示，kube-proxy 通过 iptables 允许访问 KUBE-CLUSTER-IP 的流量，并通过在虚拟网卡 kube-ipvs0 上配置 ClusterIP 的方式，让内核以为 ClusterIP 为本机 IP，从而走 iptables 的 INPUT 链进入本机，继而通过 IP Virtual Server 找到 Real Server 提供服务。

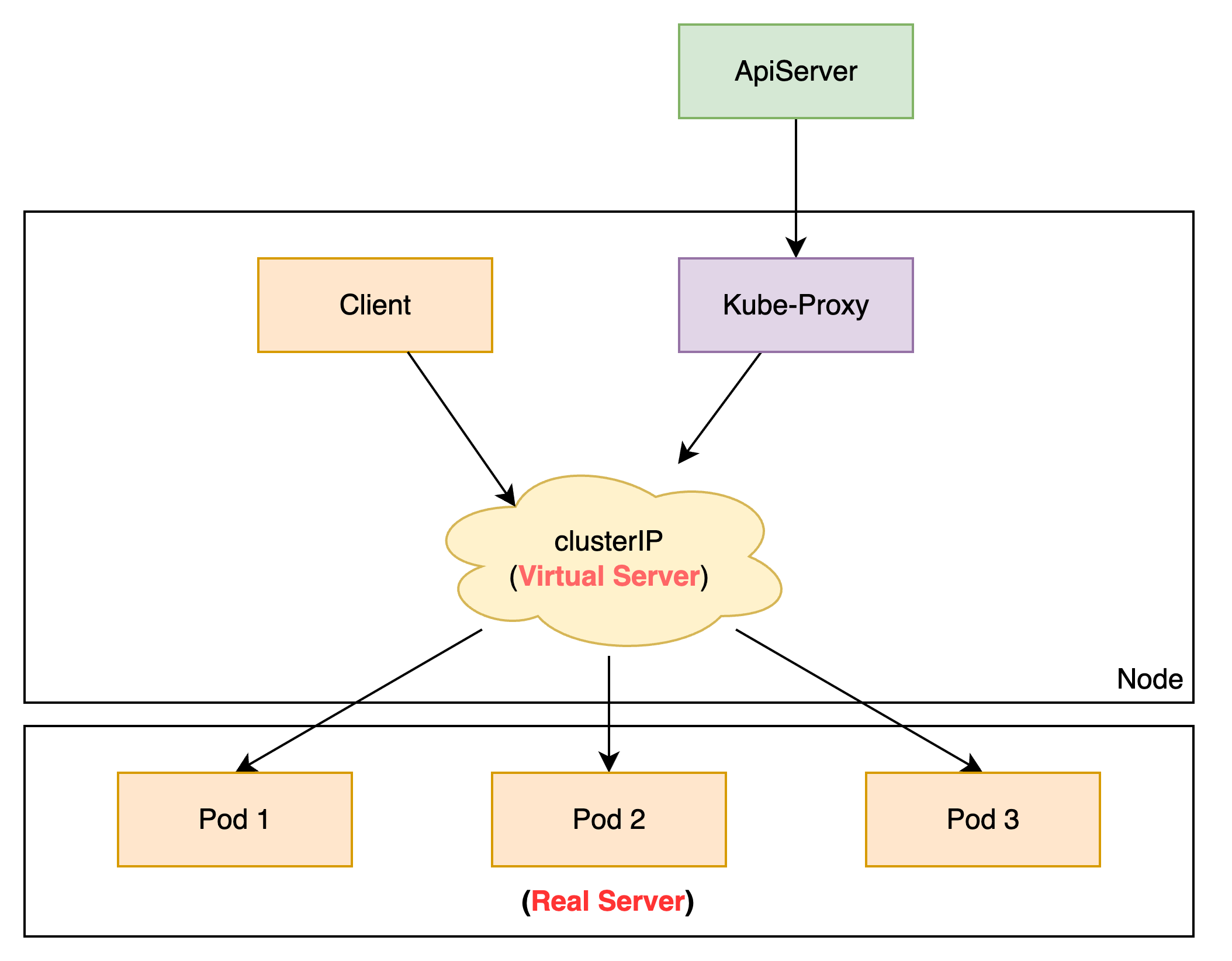

IPVS模式工作原理示意图:


FAQ

Q: 为什么每个svc会在ipvs网卡增加vip地址

A: 由于IPVS没有实现 NF_IP_PRE_ROUTING，就不会在进入NF_IP_LOCAL_IN之前进行地址转换。那么数据包经过路由判断后，会进入NF_IP_LOCAL_IN Hook点，IPVS回调函数如果发现目标IP地址不属于该节点，就会丢弃数据包。因此，K8S创建dummy网络接口k8s-ipvs0，然后将service cluster ip绑定到该接口上，内核在处理数据包时，会发现该目标 IP 地址属于该节点，于是可以继续处理数据包。
